Grab a reliable pair of scissors and a punch-down tool. You’ll need these to trim and secure the wires properly. Start by stripping about an inch of insulation from the end of the wire. Be careful not to damage the inner wires.
After stripping, you’ll notice four twisted pairs of wires. Follow the T568B color code for standard wiring: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Arrange these wires in the correct order to ensure proper connectivity.
Once aligned, trim the wires to the desired length. Insert them into the connector until they reach the end. Use the punch-down tool to secure each wire in place, ensuring a snug fit. This step is crucial for a stable connection.
Finally, double-check the wiring order and secure the connector with a crimping tool. Test the connection with a cable tester to confirm everything is functioning as it should. Now you’re ready to enjoy a seamless internet experience!
Wiring Steps for an Ethernet Connector
First, gather your tools: an Ethernet connector, cable stripper, and crimping tool. Cut the network line to the desired length, ensuring you have enough slack for movement.
Prepare the Wires
Strip about an inch of insulation from the end of the wire. You’ll see four twisted pairs. Untwist them carefully and align them according to the standard color codes:
- Pin 1: White with blue stripes
- Pin 2: Blue
- Pin 3: White with orange stripes
- Pin 4: Orange
- Pin 5: White with green stripes
- Pin 6: Green
- Pin 7: White with brown stripes
- Pin 8: Brown
Choose either T568A or T568B standard for consistency across your setup.
Insert and Crimp
After aligning the wires, trim them to ensure they are even. Insert them into the Ethernet connector, making sure each wire reaches the end. Then, use the crimping tool to secure the connector. This creates a solid connection.
Finally, test the connection with a cable tester to confirm everything is functioning correctly. This last step ensures no misalignment occurred during assembly.
Choosing the Right Tools and Materials for Cat 5 Wiring
To achieve a successful connection, gather these items: a crimping tool, wire strippers, a punch-down tool, and connectors. Each of these tools plays a specific role in ensuring a secure and functional assembly.
Required Tools
The crimping tool is crucial for attaching connectors to the ends of your wire. Look for one that feels comfortable and is easy to handle. For stripping the outer insulation, a pair of wire strippers is necessary; select a model that can accommodate various wire gauges.

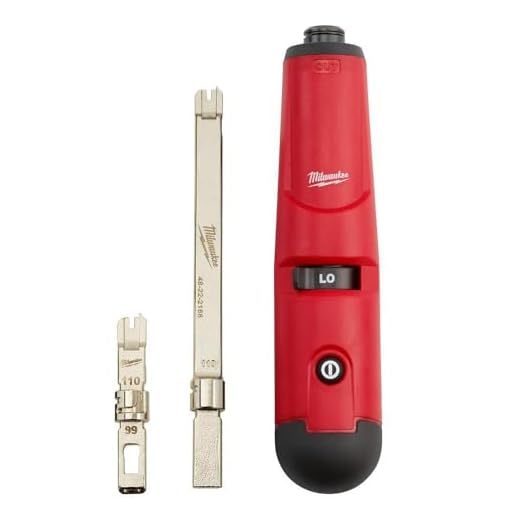

A punch-down tool is essential for connecting wires to a patch panel or wall plate. Choose one with a blade that fits your needs, as it will help secure the wires in place efficiently.
Materials Needed

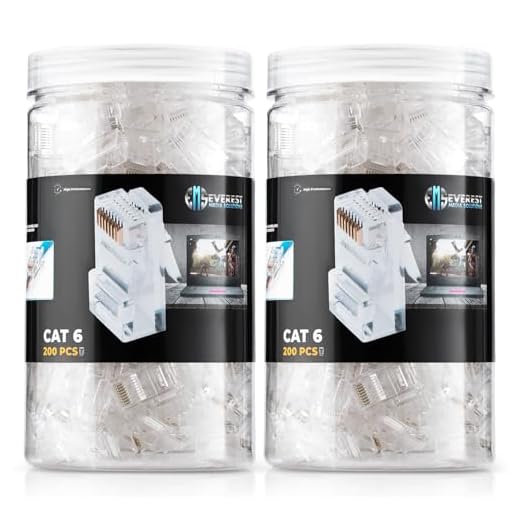

Opt for high-quality connectors that fit snugly onto the cable. RJ45 connectors are standard for this type of wiring. Ensure the wire itself is solid and free from damage. Quality materials contribute to the overall performance of the network.
Don’t forget about the importance of a cable tester. This device verifies that the connections are correct and functioning properly, saving you from potential frustrations later on.
Gathering these tools and materials will set a solid foundation for your wiring task. With everything on hand, you’ll be ready to tackle the project effectively.
Step-by-Step Guide to Terminating Cat 5 Cable at the Jack
First, strip about two inches of the outer insulation from the end of the wire using a cable stripper. Be careful not to damage the internal pairs.
Next, untwist the pairs of wires and align them according to the T568A or T568B standard. T568A is often used in residential setups, while T568B is common in commercial environments.
Cut the wires to a uniform length of about one inch from the outer jacket. This ensures a neat termination and optimal performance.
Insert the wires into the jack in the correct order, following the color codes. Push them firmly into the slots until they reach the end of the jack. Each wire should fit snugly.
Use a punch down tool to secure the wires in place. Press down firmly to ensure a solid connection, avoiding any loose strands.
Once all wires are terminated, trim any excess wire sticking out of the jack for a clean finish. Then, snap the jack cover into place.
Finally, test the connection with a network cable tester to make sure everything is working properly. This step is crucial to avoid future issues.
If you’re dealing with a furry friend who has been feeling unwell, check out this link for tips on how to stop your cat from throwing up.
Testing the Wired Connection for Proper Functionality
Ensure the connection is functioning correctly by utilizing a network cable tester. This device checks for continuity and identifies any faults in the wiring. Connect one end of the terminated line to the main unit and the other end to the remote unit. A series of lights will indicate whether the pins are correctly aligned and if the connection is solid.
If you don’t have a tester, connect a device, like a laptop, to the outlet. Verify the connection by checking the network settings. If the device receives an IP address, the connection is likely good. If not, inspect the terminations for any miswiring.
Pay attention to the LED indicators on your network equipment. A blinking light usually signifies activity, while a steady light indicates a solid connection. If you encounter issues, check the connections again and ensure they follow the correct pinout configuration.
